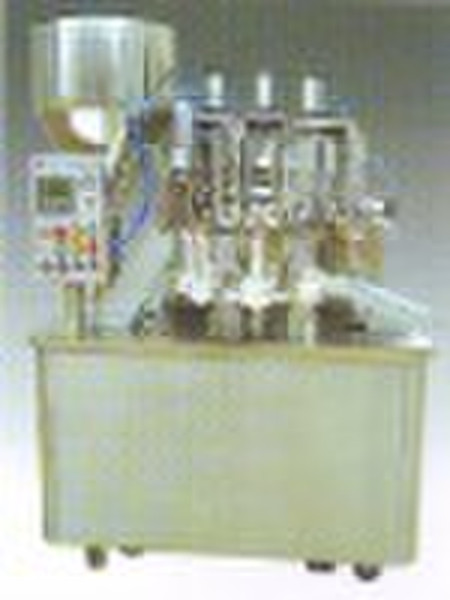

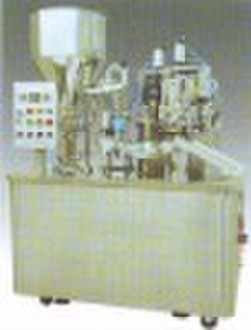

Tube filling and sealing machines

It canfill and seal all sorts of pastes, latexes, oils and others with various types of laminate (ABL/PBL) tubes and plastic tubes.This machine is highly automatic, which can automatically fill, seal, stamp batch numbers and exit tubes. Type RGFS-50Aadopts outer heating, using two electric heating tubes, whichcontrolled by four-channel temperature measuring and regulating meter. Type RGFS-50B adopts inner heating by using LEISTER air-heater,which imported from Switzerland. Stainless steel is adopted for the parts contacting with stuffs to endure erosion from acid and alkail. All the pipesare collected byquick bar clasp, which is convenient and quickly to beloaded and unloaded by hand. Stuff valve iscleaned easily and thoroughly by using rotary valve.The position is installedprecisely and smoothly by adopting accuracy cam indexing mechanism. The user can adjust speed easily with the frequency conversion controller, which adopted on the rotating engine. Airproof changing hopper, heating hopper, auto charging can be equipped as demanded. Technical parameters: Power supply220VAC/50HzPower2.0KW Air Exhausion0.3-0.5cubic meter/minAir supply0.6MPaFilling capacity 5-25ml adjustable 15-150ml adjustable 30-200ml adjustable Tube diameterDia. 16-40mmTube length70-200mmMeasuring precision±0.5%Production ability30-50 pcs/minsize1000×800×1600mmWeight300kg
